| Response Time: | 0.5s | Cable Gland: | M16*1.5 |
|---|---|---|---|
| Meida: | Air And Neutral Gases | Measurement Units: | Pa, MmH₂O, InWG, MmHG,mbar |
| Auto Zero: | Manual Calibration | Measurement Range: | -10000---10000 Pa |
| Repeatability: | ±0.01 % At FS /Year | Tolerated overpressure: | ×15 |
| ハイライト: | DPT differential pressure transmitter with warranty,fast response differential pressure transmitter,high repeatability differential pressure sensor |
||
| Attribute | Value |
|---|---|
| Response Time | 0.5s |
| Cable Gland | M16*1.5 |
| Media | Air And Neutral Gases |
| Measurement Units | Pa, MmH₂O, InWG, MmHG, mbar |
| Auto Zero | Manual Calibration |
| Measurement Range | -10000---10000 Pa |
| Repeatability | ±0.01 % At FS /Year |
| Tolerated overpressure | ×15 |

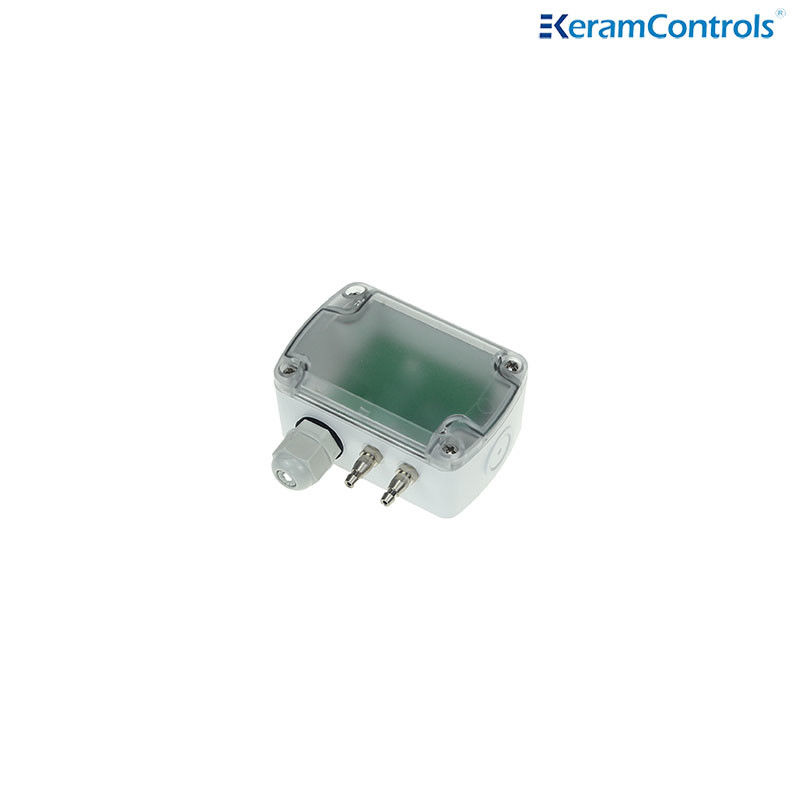

The DPT Differential Pressure Transmitter is a versatile and reliable instrument designed to accurately measure differential pressure in various industrial applications. With a wide operating temperature range of -20 to +70°C, this transmitter is suitable for use in diverse environmental conditions.
One of the key features is its ability to handle a tolerated overpressure of up to 15 times the normal operating range, ensuring durability and longevity for demanding applications.
| Parameter | Specification |
|---|---|
| Repeatability | ±0.01% At FS /Year |
| Measurement Units | Pa, MmH₂O, InWG, MmHG, mbar |
| Auto Zero | Manual Calibration |
| Response Time | 0.5s |
| Cable Gland | M16*1.5 |
| Power Consumption | <3 W |
| Media | Air And Neutral Gases |
| Output Signal | 4-20 MA(2 Wire), 4-20 MA(2 Wire), 0-5V/0-10VDC(3wire), RS-485, Customized |
The Keramcontrols DPT Differential Pressure Transmitter (Model KDP110) is suitable for various industries including HVAC systems, cleanrooms, pharmaceutical manufacturing, and industrial process control. Its precision and accuracy make it valuable for critical processes requiring reliable pressure monitoring.
With CE certification and energy-efficient operation (<3 W power consumption), this transmitter offers superior performance and durability in challenging environmental conditions (-40 to +60°C storage temperature range).
